Fibersense - The Source for

Advanced Bio-Photonic Devices

Fibersense & Signals Announces Enabling and Problem-Solving Devices for Biophotonic and Experimental Biomedical Applications

Fibersense designs and fabricates unique enabling devices to realize the true promise and potential of biophotonic and experimental biomedical developments and procedures. With their high efficiency and advanced features Fibersense's photonic devices represent a paradigm shift in the delivery, distribution and detection of laser-light.

Fibersense's state-of-the-art biophotonic devices support and enable research on emerging biophotonic technologies such as:

Photo Dynamic Therapy (PDT) for experimental cancer treatments

Laser Fluoresence Imaging (LFI) for cancer diagnosis and to detect ----pre-cancerous conditions

Near-Infrared Raman Spectroscopy for diagnostic applications

Spectroscopy of tissue

MultiSpectral Imaging

Diagnostic/sample laboratory testing and immunoassay units

Light-based visualization and image acquisition technologies

Image-guided procedures and therapies

Please Note: Fibersense's laser-based devices are supplied for experimental and investigational purposes only. The user assumes all risk and liability in connection with the use of any device or product.

High-Performance Products include:

Multiport Laser Delivery/Distribution Devices
Combiners
High Power LED Combiners
Laser Diode/LED Fiber-Coupled Multiwavelength Combiners
Complete range of High Power Patchcords, Cables and Cable
__ ___Assemblies.

Products, Features and Capabilities

Multiport Laser Delivery and Distribution Devices
Multiple Outputs from a Single Source

With its own innovative and leading edge technologies, Fibersense fabricates multiport laser distribution devices that deliver an input signal from a single source/fiber simultaneously to many outputs. In contrast with conventional (and generally inefficient) fiber bundles and arrays, these advanced, entirely integrated devices enjoy low loss, and allow for excellent and repeatable power distribution, with a high degree of uniformity.

The multiple delivery outputs provide a versatile and many-faceted approach to the treatment or target site, since the individual outputs can be positioned exactly as required, to maximum advantage and effect. This approach greatly reduces the duration of tests and procedures since multiple sites, targets or samples can be treated at the same time. In investigational medical procedures this also translates to a considerable reduction in the stress and discomfort of the subject. The multiple outputs also constitute a much more economic use of the laser source, since wear and tear on the source is reduced and its effective working life is prolonged.

Fibersense can fabricate these devices with virtually any fiber type, fiber diameter and wavelength compatibility, with Numerical Apertures and power -handling capabilities to meet all biophotonic laser delivery requirements. A wide variety of termination, packaging and custom design options are offered.

FS-MPLD-Series



FEATURES:

Two (2) Input x Five (5) Output Configuration, 400 core, glass core/hard clad, high Numerical Aperture Fiber. The main input lead is terminated in an SMA connector, the second input is unterminated for use as an aiming-beam input, for alignment help, or as a spare input.

Fully integrated, monolithic devices
High Performance/Low Loss
High output port uniformity or accurate splitting ratios
Reliable and repeatable performance
Comprehensive range of fiber types and sizes
Versatile packaging options
Complete range of termination options

Configurations: 1 Input x N Outputs
(i.e. 1 x 3, 1 x 4, 1 x 5, 1 x 6, 1 x 7, 1 x 8 ……)

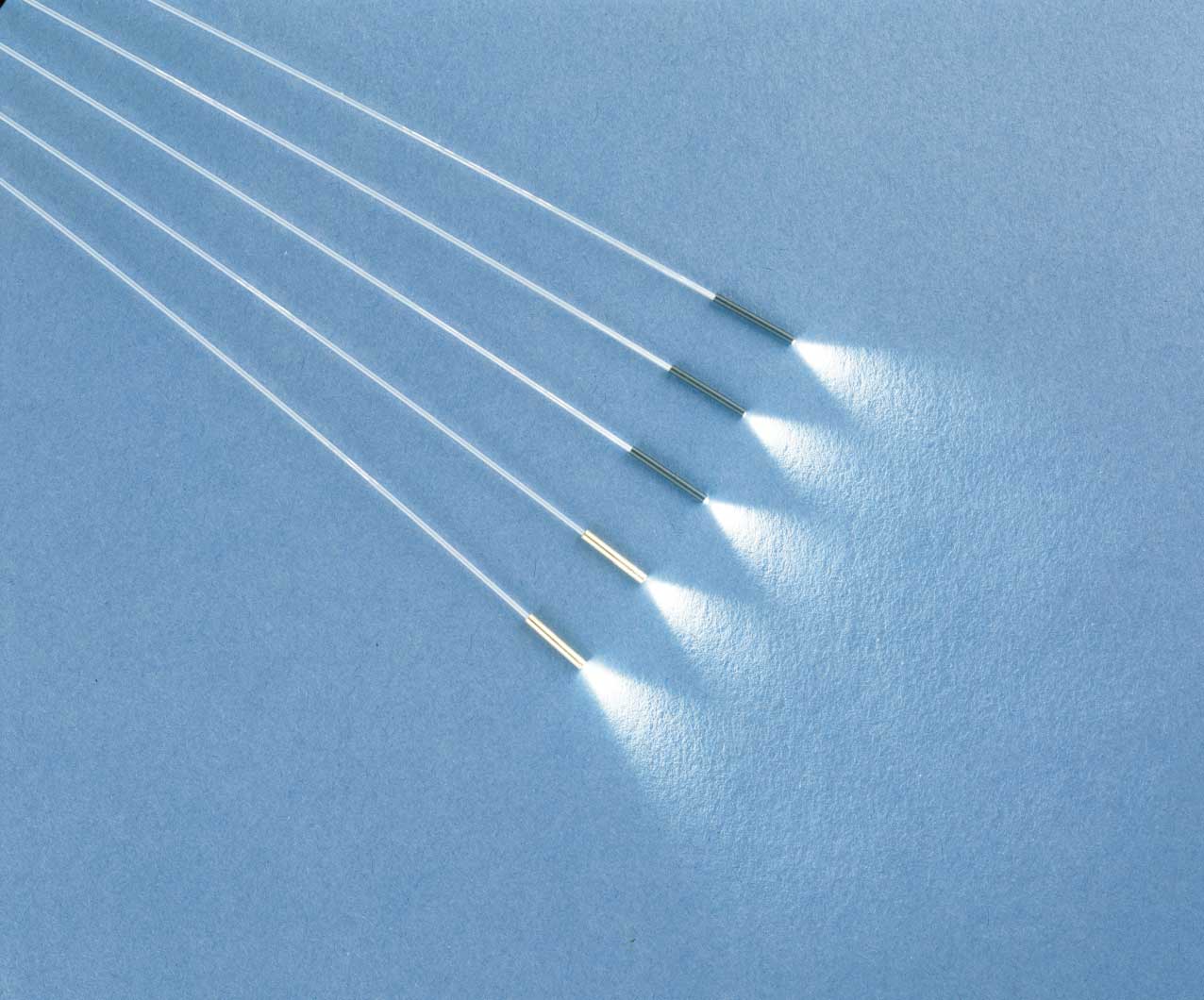

(Above) Detail of the five output leads showing uniform light distribution from the high Numerical Aperture fiber delivery-leads with lensed terminations.(Lead lengths can be customized)

Fiber Types: Singlemode
Multimode:
100m, 200m, 300m, 400m, 500m, 600m, 800 m, 1000m core diameters and larger.
All Silica (Glass Core/Glass Clad) fiber
Hard Clad (Glass Core/Hard Clad) Fiber.
Specialty and Customer-Supplied fiber can be accommodated.
Numerical Aperture: 0.19, 0.22, 0.37, 0.39 etc. as per fiber type
Wavelengths: UV, Vis-near IR, and IR

Fiber Input/Output Lead Lengths: Standard: 50 cm; 1 m.
Custom lead lengths (short or extra long) can be accommodated
Lead Reinforcement: 9m sleeving,
3mm reinforced cable
Terminations: Bare fiber, polished fiber,
Pigtails with connectors of choice (SMA 905, SMA 906, ST, FC/PC etc)
Collimating lenses,
Focusing lenses,
High power connectors also available.
Packaging: Compact pigtailed units;
Box-enclosed units;
Rack-mount units.
Custom packaging is also available.



Special Options:

Fibersense's Multiport Devices can be supplied with the following custom options:

Delivery outputs in accurate multiple splitting ratios
(e.g. 60%/20%/20%; 90%/10% 1%)

Dual inputs, "Aiming Beam" Option
The dual input feature provides a second or subsidiary input that can be utilized to deliver a useful marking or guiding beam while the outputs are being positioned on the treatment/target or sample site. When the optimum positions are located, the outputs remain in place, undisturbed, while the aiming-beam input is disconnected. The main power output is then engaged to carry laser power at the full treatment or procedural strength.

Asymmetrical Option
i.e. Input and Outputs of differing fiber sizes.

Custom Fiber Option
Fibersense will supply devices with specialized fiber and customer-supplied fiber.

" Detachable Delivery Lead Option
Box-enclosed and Rack-mount units can be supplied with box-mounted connector receptacles for use with detachable/disposable fibers.

Fibersense's Custom Equi-Port™ Distribution Devices



In applications where the uniformity of output power levels is of particular importance, Fibersense can supply Equi-Port™ devices, utilizing cutting-edge technology to provide extremely tight tolerances on uniform splitting ratios.

Combiners

Another of Fibersense's many innovative contributions to the fiber optic and biophotonic field is the concept of a true Combiner device, combining multiple Inputs on to a single, shared Output fiber with low loss.

FS-LCOM-Series

FEATURES:

Fully integrated, monolithic devices
Compact design
High Performance/Low Loss
Reliable and repeatable performance
Comprehensive range of fiber types and sizes
Versatile packaging options
Complete range of termination options

Configurations: N Inputs x 1 Output
(i.e. 2 x 1, 3 x 1, 4 x 1, 5 x 1, 6 x 1,
7 x 1, 8 x 1 ……)
Fiber Types: Singlemode
Multimode:
100m, 200m, 300m, 400m, 500m, 600m, 800 m, 1000m core diameters and larger.
All Silica (Glass Core/Glass Clad) fiber
Hard Clad (Glass Core/Hard Clad)
Fiber.
Specialty and Customer-Supplied fiber can be accommodated.
Numerical Aperture: 0.19, 0.22, 0.37, 0.39 etc. as per fiber type
Wavelengths: UV, Vis-near IR, and IR

Fiber Input/Output Lead Lengths: Standard: 50 cm; 1 m.
Custom lead lengths (short or extra long) can be accommodated
Lead Reinforcement: 9m sleeving,
3mm reinforced cable
Terminations: Bare fiber, polished fiber,
Pigtails with connectors of choice (SMA 905, SMA 906, ST, FC/PC etc)
Packaging: Compact pigtailed units;
Box-enclosed units;
Rack-mount units.
Custom packaging is also available.

High Power LED Combiners

Fibersense's High Power LED Combiners provide an efficient means of combining individual, fiber-coupled LEDs on to a single output fiber, thus producing a high power source at relatively low cost.

Laser Diode/LED Fiber-coupled Multi-Wavelength Combiners

Fibersense's Multi-Wavelength Combiners readily and efficiently combine multiple wavelengths from individual Laser Diodes or LEDs on to a single output fiber.

The wavelengths can be utilized individually, in sequence or in combination via the minimally invasive, shared optical fiber output.

Applications include:

Experimental devices, instrumentation and systems which utilize two or more LD/LED wavelengths for a variety of tissue-penetration, fluorescence-stimulation and therapeutic purposes.

Diagnostic and analytical systems, such as immunoassays, in which multiple wavelengths are used to detect the presence of substances within specimens or samples.

Please Note: Fibersense's laser-based devices are supplied for experimental and investigational purposes only. The user assumes all risk and liability in connection with the use of any device or product.

High Power Patchcords, Delivery Cables and Cable Assembles

Fibersense fabricates high quality patchcords, cables and cable assemblies for high power, biophotonic and custom applications and environments.

Patchcords and Cables:

FS-PC series

Features:

High Performance/Low Loss
Comprehensive range of fiber types and sizes
Standard or custom lengths
Complete range of termination options
Standard and custom lengths
Ruggedized and custom options
Integration with any type of LED or Laser Diode source is available



Fiber Types: Singlemode
Multimode:
100m, 200m, 300m, 400m, 500m, 600m, 800 m, 1000m core diameters and larger.
All Silica (Glass Core/Glass Clad) fiber
Hard Clad (Glass Core/Hard Clad)
Fiber.
Specialty and Customer-Supplied fiber can be accommodated.
Numerical Aperture: 0.19, 0.22, 0.37, 0.39 etc. as per fiber type
Wavelengths: UV, Vis-near IR, and IR

Fiber Input/Output Lead Lengths: Standard: 1 m., 5 m, 10 m
Custom lead lengths (up to 1 Km) can be accommodated
Reinforcement: 3mm kevlar-reinforced cable
9 m sleeving
PVC monocoil
Armoured sheathing
Vacuum compatible options
Terminations: Connectors of choice (SMA 905, SMA 906, ST, FC/PC etc)
High power connectors
Custom ferrules/terminations



High Power Cable Assemblies/Arrays

FS-CA series

Fibersense has extensive experience and unmatched expertise in the design and fabrication of high power cables assemblies and arrays for a wide range of applications including:

Laser delivery/distribution
Illumination
High power sensing/monitoring
Scintillator/detector arrays

They feature all the advantages of Fibersense's patchcords in terms of comprehensive fiber, termination, and reinforcement options. Configuration options include:

Bifurcated cables
Bundle arrays
Dual and multi-channel fiber optic arrays, and fan-out cables
Custom configurations
Vacuum compatible options
Extended temperature and harsh environment range available

Custom lead lengths from several centimeters to 1 Kilometer can be accommodated
Custom end-plate options
Integration with any type of LED or Laser Diode source(s) is also available
